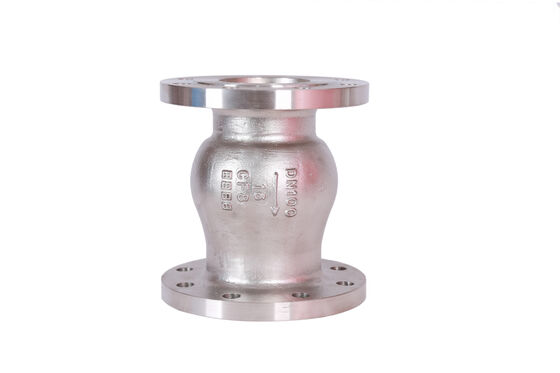

304 Stainless Steel Silent Check Valve with Non-Slam Closure and Low Head Loss for Corrosive Applications

  • 304 Stainless Steel Silent Check Valve with Non-Slam Closure and Low Head Loss for Corrosive Applications
Tempat asal Cina
Nama merek YOUWEI

Hubungi saya untuk sampel gratis dan kupon.

Whatsapp:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.

x
Detail produk
Bahan Pengecoran, Kuningan, Baja Tahan Karat, Besi Ulet, GGG40 Ukuran Pelabuhan DN50-DN1200,Standar,2"-24",DN50-800,3/4"
Kekuatan Manual, Penggerak Listrik, Hidraulik, Dioperasikan dengan Roda Tangan, GO Tekanan Tekanan Sedang, Tekanan Rendah, PN10-16,PN1.0/PN1.6,250PSI
suhu media Suhu Sedang, Suhu Normal, Suhu Rendah, -10~100℃ Media Air, Minyak dll., Gas dan sebagainya
Aplikasi Umum, irigasi, distribusi air, Industri, Sistem Air Struktur Gerbang, Kupu-Kupu, Katup Gerbang Tidak Meningkat
Standar atau Tidak Standar Standar Nama Produk katup gerbang, Katup Gerbang Listrik Besi Cor dengan Batang Tidak Meningkat DN40-DN600, DIN/BS Katup
Standar DIN,BS,JIS,F5;AWWA C509/C515;ANSI,DIN3352 Ukuran DN40-DN600,DN50 ~ DN 1000,2''-24'',DN15 To100
Koneksi Ujung Flange, Bergelang Ganda, BSP, Ujung Soket, Benang Wanita Bahan Tubuh Besi Ulet, DI/CI,DI, besi cor, Kuningan
Warna Biru, Permintaan Pelanggan, Kebutuhan Pelanggan, Kuning, ABU-ABU Sedang Air, Air Minyak Gas
Jenis Katup Gerbang, Terbuka Normal, 2 arah, Batang Tidak Meningkat/ NRS Tipe katup Gerbang katup
Segel dilapisi karet, Logam, PTFE
Menyoroti

304 Stainless Steel Silent Check Valve

,

Silent Non-Slam Closure Check Valve

,

Low Head Loss Check Valve
Tinggalkan pesan
Deskripsi Produk
304 Silent Check Valve
Product Overview
The 304 Silent Check Valve is an advanced, hydraulically optimized check valve engineered to prevent reverse flow without water hammer, shock noise, or disc slamming. Featuring a streamlined axial or tilting disc design, it ensures smooth, silent, and reliable operation in systems where noise, pressure surge, and valve wear are critical concerns. Constructed entirely from 304 stainless steel, it is ideal for corrosive, hygienic, and demanding fluid handling applications.
Key Features
  • Silent, Non-Slam Closure: Unique internal design with spring-assisted or lever-weighted mechanism ensures gradual, shock-free closure even under fluctuating flow conditions.
  • 304 Stainless Steel Construction: Excellent corrosion resistance, durability, and hygiene compliance for chemical, marine, food, and pharmaceutical industries.
  • Low Head Loss: Streamlined flow path and optimized disc geometry minimize pressure drop and improve system efficiency.
  • Maintenance-Friendly Design: In-line repairable models allow for seat and spring replacement without removing the valve body from the pipeline.
  • Versatile Mounting: Can be installed in horizontal or vertical pipelines (flow direction upward).
  • Long Service Life: Precision-machined seating surfaces and corrosion-resistant materials ensure reliable sealing and extended durability.
Technical Specifications
Body & Trim Material AISI 304 Stainless Steel
Seat Seal EPDM, NBR, FKM, or PTFE (optional)
Spring Material 304 or 316 Stainless Steel
Connection Types Threaded (NPT/BSP), Flanged (ANSI/DIN), or Wafer
Size Range ½" to 24" (DN15 to DN600)
Pressure Rating Class 150 / PN16 to Class 300 / PN40
Temperature Range -20°C to +120°C (w/ elastomeric seals) | Up to 400°C (all-metal design)
Compliance API 594, API 6D, ISO 5208, or as customized
Applications
  • Water & wastewater treatment plants
  • HVAC, pumping stations, and booster systems
  • Chemical, petrochemical, and process industries
  • Marine & offshore piping systems
  • Food, beverage, and pharmaceutical processing
  • Fire protection and irrigation systems
Operation Principle
The valve utilizes a guided disc and a calibrated spring (or lever-counterweight) to control the closing motion. As forward flow decreases, the spring gently returns the disc to the seat before reverse flow occurs, eliminating sudden closure and associated hydraulic shock.
Benefits
  • No Water Hammer: Protects pipelines, pumps, and equipment from pressure surges.
  • Quiet Operation: Ideal for noise-sensitive environments such as buildings and hospitals.
  • Energy Efficient: Reduced pressure loss lowers pumping costs.
  • Low Maintenance: Non-slamming action drastically reduces wear on sealing surfaces.
  • Safe & Reliable: Prevents backflow contamination and system failure.
Installation Notes
• Ensure proper flow direction alignment with valve arrow.
• Support the valve appropriately to avoid pipeline stress.
• For vertical installation, confirm valve orientation suitability with manufacturer.
• Recommend installing downstream of pumps or system outlets where flow reversal risk exists.
