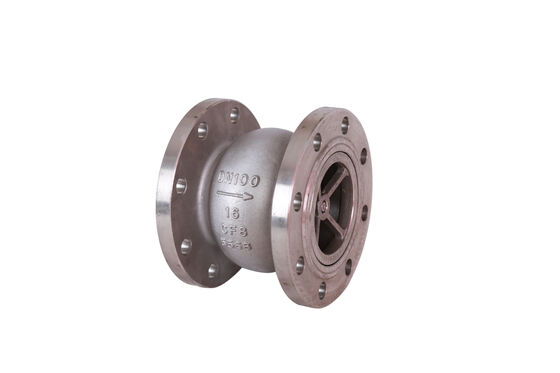

304 Stainless Steel Silent Check Valve HC41X-16P with PN16 Pressure Rating and Wafer-Style Design

  • 304 Stainless Steel Silent Check Valve HC41X-16P with PN16 Pressure Rating and Wafer-Style Design
Tempat asal Cina
Nama merek YOUWEI

Hubungi saya untuk sampel gratis dan kupon.

Whatsapp:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.

x
Detail produk
Bahan Pengecoran, Kuningan, Baja Tahan Karat, Besi Ulet, GGG50 Ukuran Pelabuhan DN50-DN1200,Standar,2"-24",DN50-800,3/4"
Kekuatan Manual, Digerakan Listrik, Hidrolik, Dioperasikan dengan Handwheel Tekanan Tekanan Sedang, Tekanan Rendah, PN10-16,PN1.0/PN1.6,250PSI
suhu media Suhu Sedang, Suhu Normal, Suhu Rendah, -10~100℃ Media Air, Minyak dll., Gas dan sebagainya
Aplikasi Umum, irigasi, distribusi air, Industri, Sistem Air Struktur Gerbang, Kupu-Kupu, Katup Gerbang Tidak Meningkat
Standar atau Tidak Standar Standar Nama Produk katup gerbang, Katup Gerbang Listrik Besi Cor dengan Batang Tidak Meningkat DN40-DN600, DIN/BS Katup
Standar DIN,BS,JIS,F5;AWWA C509/C515;ANSI,DIN3352 Ukuran DN40-DN600,DN50 ~ DN 1000,2''-24'',DN15 To100
Koneksi Ujung Flange, Bergelang Ganda, BSP, Ujung Soket, Benang Wanita Bahan Tubuh Besi Ulet, DI/CI,DI, besi cor, Kuningan
Warna Biru, Permintaan Pelanggan, Kebutuhan Pelanggan, Kuning, ABU-ABU Sedang Air, Air Minyak Gas
Jenis Katup Gerbang, Terbuka Normal, 2 arah, Batang Tidak Meningkat/ NRS Tipe katup Gerbang katup
Segel dilapisi karet, Logam, PTFE
Menyoroti

304 Stainless Steel Silent Check Valve

,

PN16 Pressure Rating Silent Check Valve

,

Wafer-Style Design Silent Check Valve
Tinggalkan pesan
Deskripsi Produk
304 Silent Check Valve HC41X-16P
The HC41X-16P is a precision-engineered silent check valve designed to prevent reverse flow in pipeline systems with minimal pressure loss and exceptional operational quietness.
Construction & Materials
Constructed primarily from AISI 304 (CF8) Stainless Steel, this valve offers excellent corrosion resistance for a wide range of media. The main body, spring, and disc are manufactured from 304 stainless steel, while the sealing element consists of durable Nitrile (NBR) or Fluorocarbon (FKM) O-ring or gasket.
Operating Principle
Utilizes a spring-assisted, axial-guided disc mechanism housed within a compact wafer-style body. The guided disc moves linearly along the valve axis, opening against spring force and fluid pressure, and closing swiftly and smoothly under spring tension and reverse flow.
Key Features
  • Silent Operation: Eliminates water hammer and associated pipeline noise through rapid, controlled closing
  • Compact Design: Wafer-style construction requires minimal installation space and fits between standard ANSI/PN flanges
  • Pressure Rating: Rated for PN16 (16 bar), suitable for Class 125 service
  • Flow Efficiency: Streamlined, full-port flow path results in very low head loss coefficient
  • Flexible Installation: Can be installed in both horizontal and vertical pipelines with upward flow
Technical Specifications
Model HC41X-16P
Body Material AISI 304 Stainless Steel
Pressure Rating PN16 (16 bar) / Class 125
Sealing Material Nitrile (NBR) or Fluorocarbon (FKM)
Installation Horizontal and vertical (upward flow)
Applications
Ideal for applications where noise, water hammer, and space are critical concerns. Widely used in HVAC systems, water supply and treatment, irrigation, chemical processing, food and beverage, pharmaceutical industries, and general industrial plumbing systems handling water, air, oils, and mild corrosive fluids.
Quality Assurance
Designed and manufactured to meet relevant industry standards for dimension, pressure, and performance. Factory tested for shell strength and seat leakage.
The HC41X-16P 304 Stainless Steel Silent Check Valve is the optimal solution for modern piping systems demanding reliable, non-slam check valve performance. Its combination of corrosion-resistant construction, silent spring-assisted operation, compact wafer design, and low flow resistance makes it a superior choice for protecting pumps and equipment while ensuring quiet, efficient, and maintenance-friendly system operation.
